Categories: Magnetizers

i Mag™ Master Magnetizer

i Mag™ Master | High-efficiency magnetizer

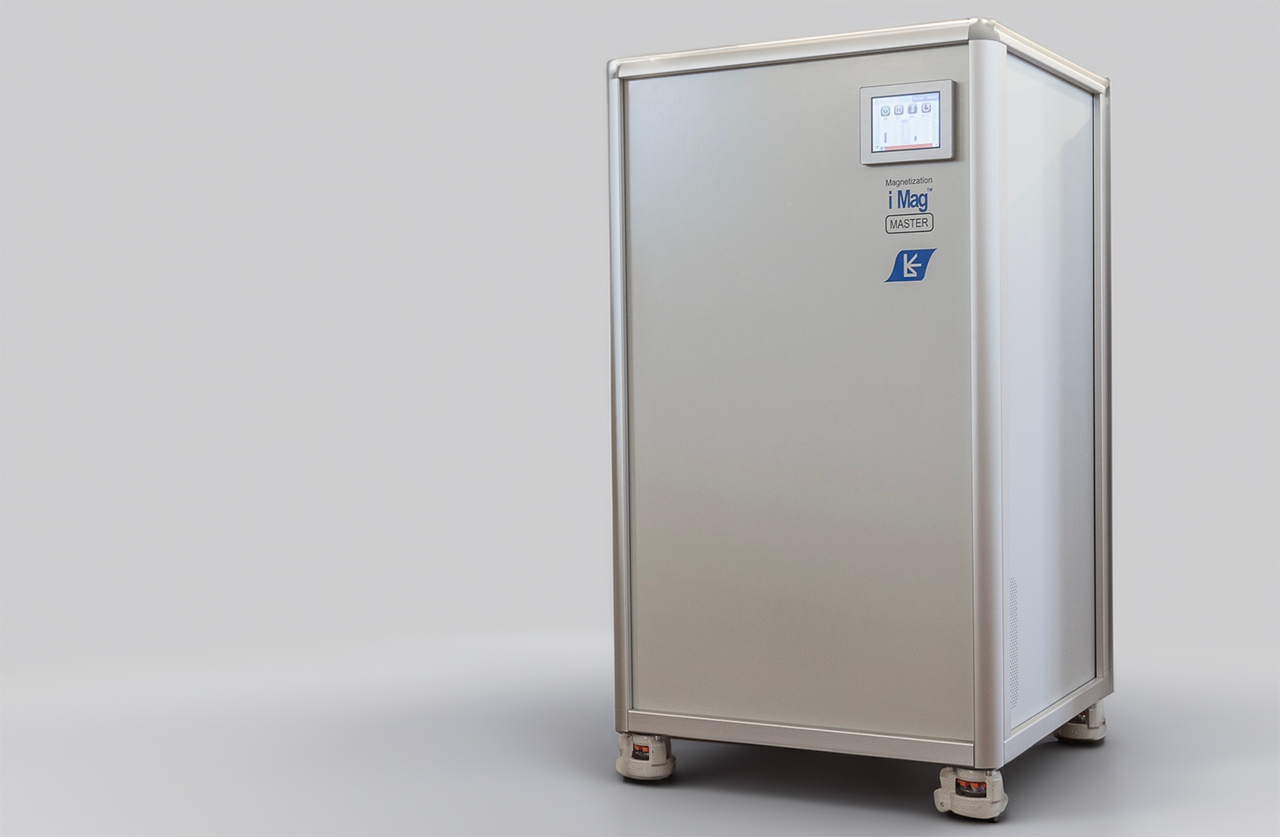

i Mag™ Master magnetizer

This high-efficiency magnetizer was designed for complex industrial applications where high fields and/or large amounts of material have to be magnetized. Achieve the exact pulse with a wide range of configurations from low to high voltage and low to high capacitance. The magnetizer also features several discharging outputs for maximum flexibility.
i Mag™ Master Magnetizer PDF
TECH SPECS
  • Voltage: up to 3500 V / up to 800 V
  • Voltage resolution: 1 V
  • Capacitance:
    up to 1100 µF / 15000 µF
    up to 2200 µF / 30000 µF
    up to 3300 µF / 45000 µF
    up to 4400 µF / 60000 µF
  • Current: 25 kA
  • Power supply: 220 V AC, 380 V AC, 480 V AC, 50-60 Hz, 3ph + ground, 20 A
  • Dimensions: L 740 x W 750 x H 1335 mm – L 29.1 x W 29.5 x H 52.5 inches
KEY BENEFITS
  • Works with two magnetizing coils
  • Unit is mobile on built-in wheels
  • H-Bridge for polarity inversion
APPLICATIONS
  • Magnetization to saturation for all types of magnetic assemblies
  • Demagnetization/treating
  • Knock down
  • Electric motors
  • Speakers
  • Clutches
  • Stickers
  • Single magnets
  • Sensor disks
  • Actuators
  • Relays
  • RCDS
Request more info
