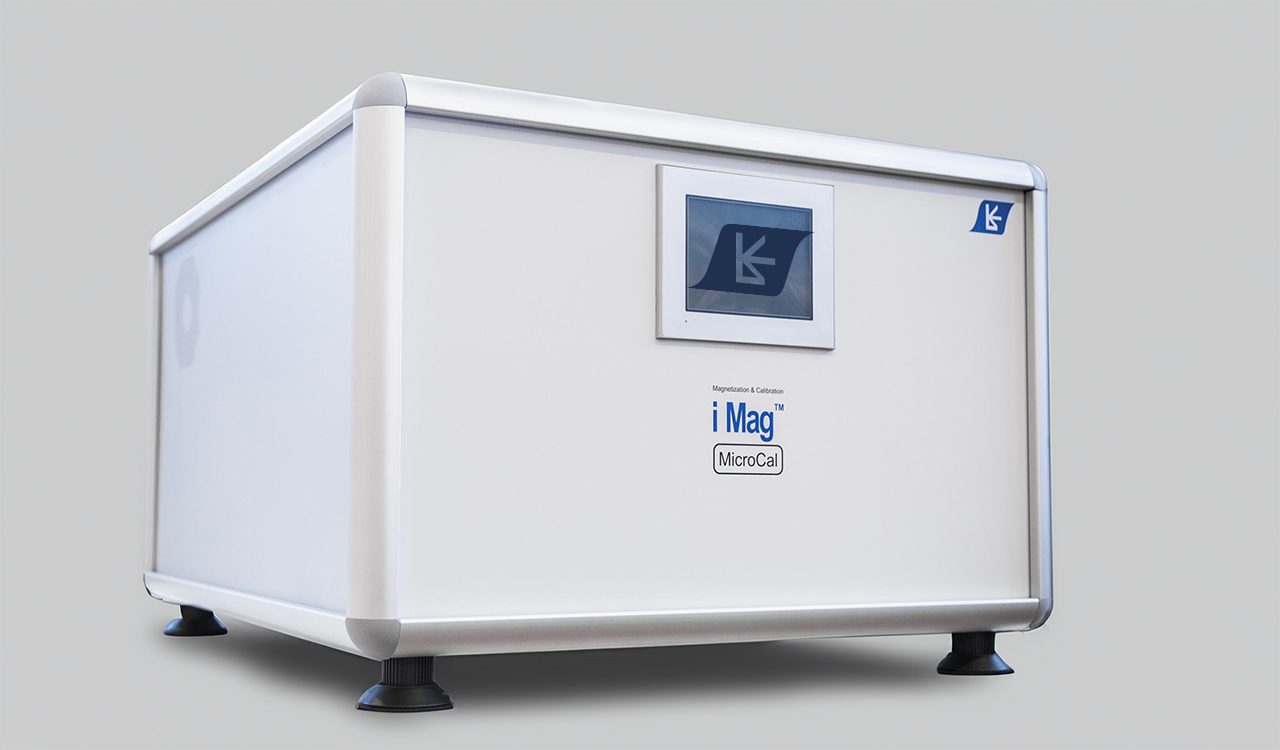

i Mag™ MicroCal Magnetizer

All-in-one Magnetizer, Demagnetizer + Treating

The i Mag™ MicroCal Magnetizer is equipped with a touchscreen HMI panel that allows the user to set up the necessary parameters and track the status of a process. With precision control options and high accuracy, i Mag™ MicroCal is a frequent choice for both industrial production and lab research.

i Mag™ MicroCal Magnetizer PDF

Request more info
KEY BENEFITS
  • All-in-one magnetization and demagnetization, as well as treating
  • Ability to measure magnetization/demagnetization by means of the fluxmeter or any other RS232 interfaced instrument, such as gaussmeters, dynamometer, etc.
  • Wide range of capacitance and voltage, either low voltage/high capacitance (for wider pulse) or high voltage/low capacitance (short pulse width)
  • Ideally suited for mass production and research labs
  • Optional: Remote Service (via LAN or Wi-Fi)
  • Compact size
TECH SPECS
  • Voltage: up to 700 V / up to 3000 V
  • Voltage resolution: 1 V
  • Capacitance: up to 8000 µF/600 µF and many other combinations
  • Rated peak current: 30 kA
  • Power supply: 200/230 V, 50/60 Hz
  • Dimensions: L 655 x W 800 x H 450 mm – L 25.8 x W 31.5 x H 17.7 inches
  • Weight: 80 kg – 176 lb
APPLICATIONS
  • PM inductors (BLDC, IPM, Sync. BL, DC, Hybrid, Sync. RM, shaded poles, linear, voice coil, and induction machines)
  • Sensors: any shape, single or multiple traces, regular or irregular spaced multi-polar patterns
  • Other magnetic devices: loudspeakers, watches, and single permanent magnets
