Magnetizing Fixtures for Sensors
These magnetizing fixtures are designed for a the high precision polarity disposition required by the positioning magnetic sensors. From low to high number of poles. They are typically made of CNC worked solid sopper conductors embedded in steel or non magnetic support.
Magnetizing Fixture for Sensors
Double trace axial magnetizing head, 8-pole inner trace and 48-pole outer trace using T-magᴾ
Magnetizing Fixture for Sensors

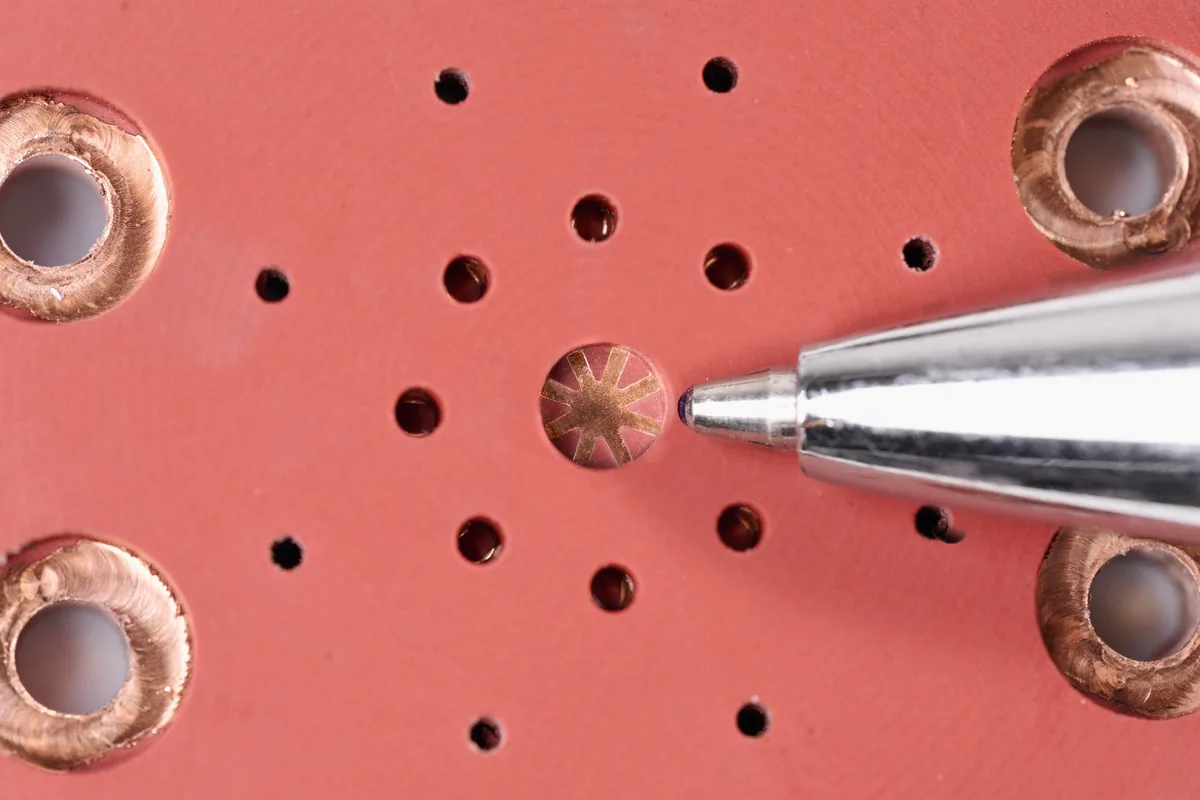

Miniature 8-pole axial magnetizing head for SmCo magnets for watches using T-magᴾ
Applications:
- Magnetization or treating of magnetic encoders
- Magnetization of positioning sensors
Key benefits:
- Robust
- High precision
- Very low pole pitch single and cumulative errors
- Very fast duty cycle
- Any type of permanent magnet materials
Options:
- Flux sense coil embedded
- Air or water cooled
- With or without magnetic core
