Axial Flux Magnetizing Fixture
The Axial Multipolar fixture has a core with an equal number of slots and poles to be magnetized. Series or parallel conductors are installed inside these slots. The conductors and the core are embedded in epoxy resin.

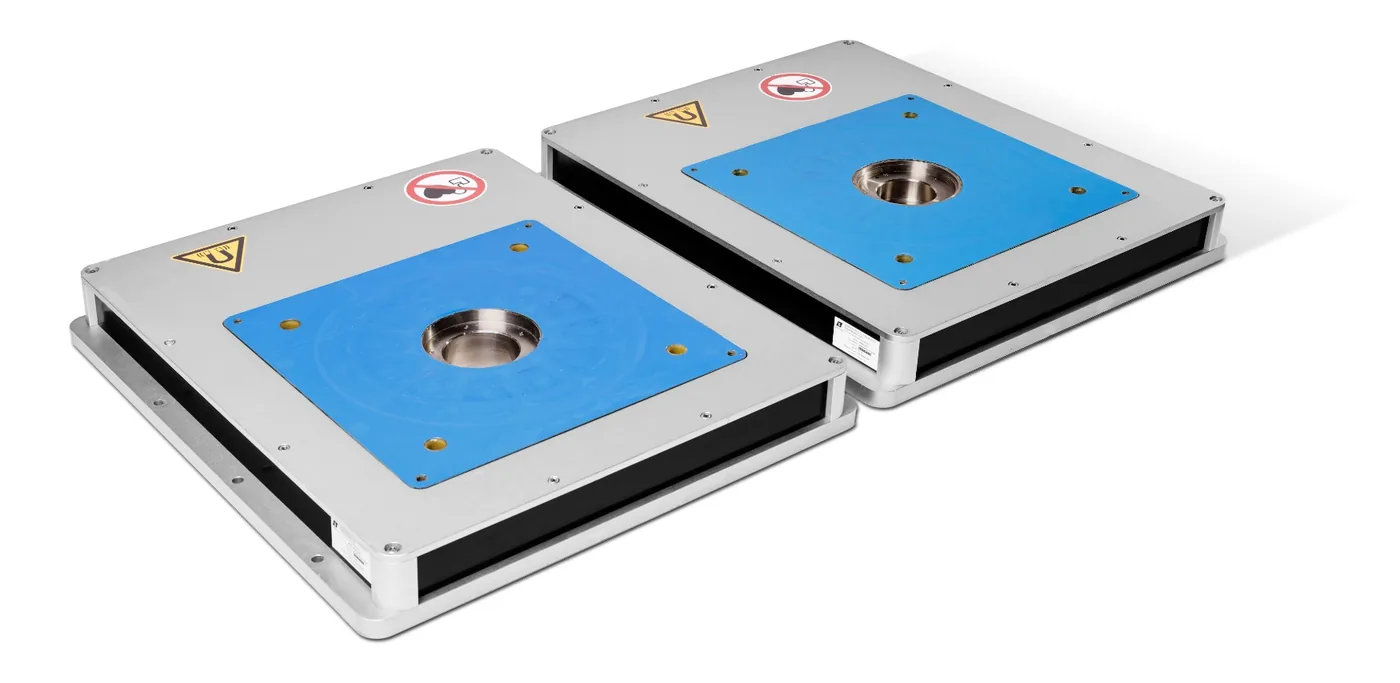

Axial flux
Axial flux magnetizing fixture for AFIR rotors, water cooled, power connectors on cable, non magnetic core, Flux sense coil embedded
Axial flux
Axial flux magnetizing fixture for AFIR rotors, water cooled, power connectors on cable, non magnetic core, Flux sense coil embedded
Applications:
- Magnetization and demagnetization of rotors for axial flux PM brushless machines, YASA, TORUS, AFIR
- Straight, continuous or step skewed rotors
- Straight continuous or discrete Halbach configurations
Key benefits:
- Robust, very fast duty cycle
- Flux sense coil embedded
- Any type of permanent magnet materials
Options:
- Air or water cooled
- With or without magnetic core
