Radial Oriented Multipolar

The Radial Multipolar fixture has an iron-laminated core with an equal number of slots and poles to be magnetized. Series or parallel conductors are installed inside these slots.

Halbach Magnetization

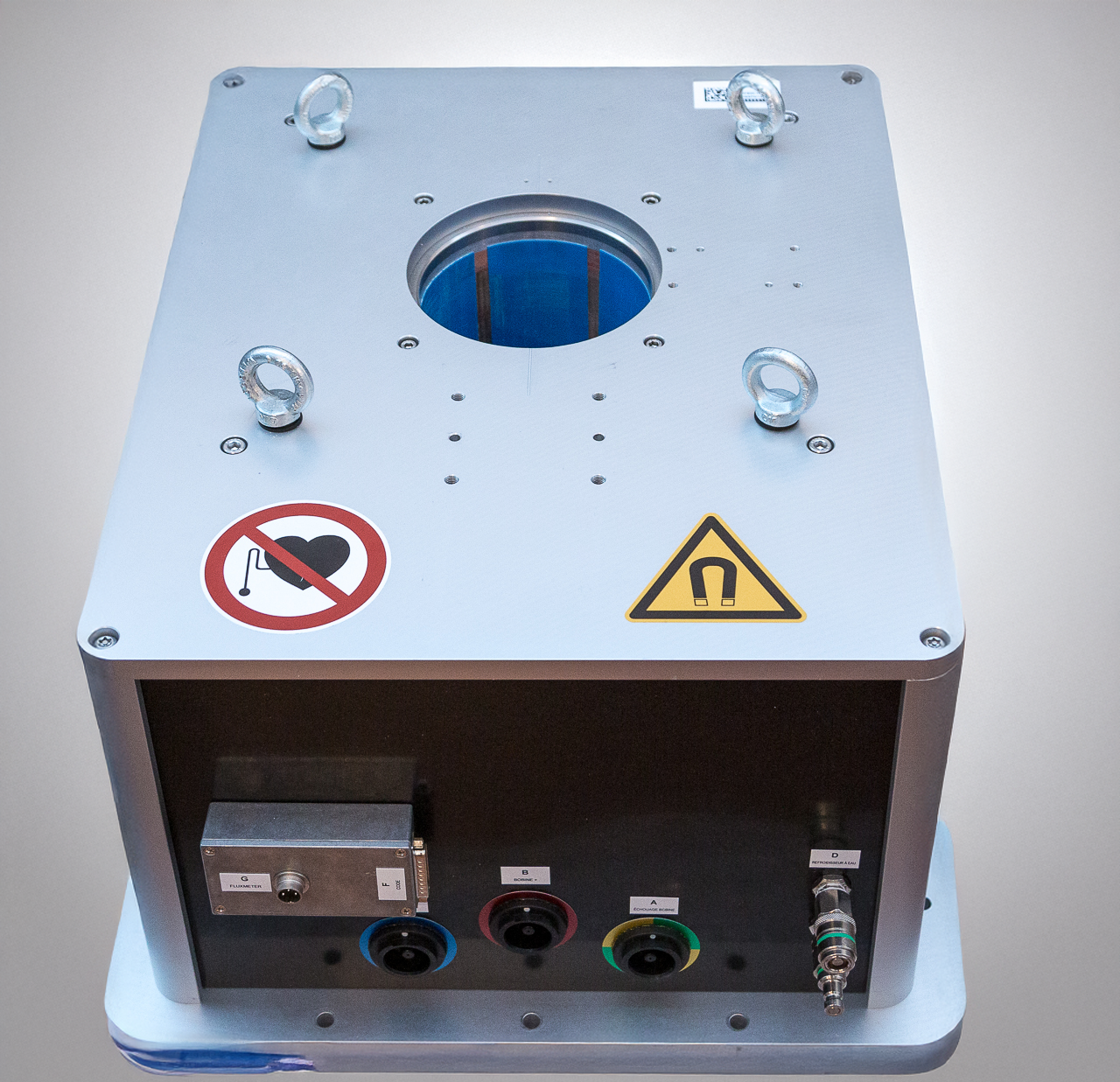

The HA radial multipolar fixture has a non-magnetic core and the fixture has the same number of slots as the poles number to be magnetized. Series or parallel conductors are displayed inside these slots. Everything is embedded in the epoxy resin and encased in an IP30 box.

With this radial multipolar fixture, radial orientation can be achieved in a number of configurations that includes Halbach plus diametric and pure radial.
