AMH-1K Permeameter: characterize rings and strips at high resolution in DC and AC

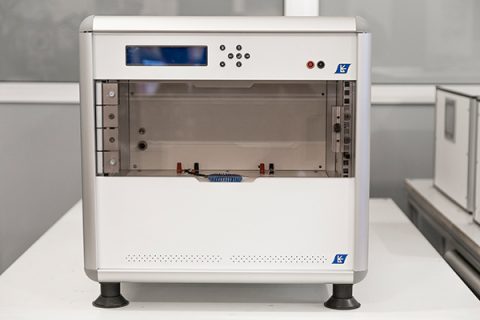

The AMH-1K-S Permeameter is a DC and AC automatic measuring system to characterize rings and strips at high resolution. It measures DC up to 1 KHz. Laboratorio Elettrofisico manufactures a complete line of combination permeameters for soft magnetic materials for DC up to 1 MHz.
>> All DC/AC AMH-series meet the International Standards IEC 60404-4, IEC 60404-2, IEC 60404-6 and ASTM A773.

Basic configuration

Fluxmeter
Arbitrary Function Generator
Power amplifier
Fast acquisition unit
Connection tool for ring sample
PC and printer
Dedicated software Neon 1.0
Reference sample, for day-to-day control

ACCESSORIES

Epstein frame (see page)
Single strip test fixture

AMH-Series Software

Our proprietary software automatically manages measurements for the AMH of AC/DC permeameters. The software ensures the measuring process is accurate and absolute and prevents the operator from improperly setting the sample’s parameters.

Soft materials measured

Iron & Carbon Steels
Fe-Si
Fe-Ni
Fe-Co
Soft Ferrite
Amorphous Alloys
Nano-Crystalline Alloys

Key benefits

Automatic measurement of complete DC or AC hysteresis loop, normal magnetization curve, permeability curve
Remanence Br, coercivity Hc, saturation values Hsat, Bsat, Jsat, cycle area, relative permeability, losses, losses separation, etc.
Easy-to-use Software and Hardware

Built-in Support

Support is provided through TeamViewer, Skype and our software, which allows sending requests technical assistance requests directly through the equipment software.
