Radial flux magnetizing fixtures

Radial Flux Magnetizing Fixtures

Radial flux Magnetizing Fixtures

The Radial Multipolar fixture has a silicon steel laminated core with an equal number of slots and poles to be magnetized. Series or parallel conductors are installed inside these slots. The conductors and the core are embedded in epoxy resin.

Radial Flux Magnetizing Fixture

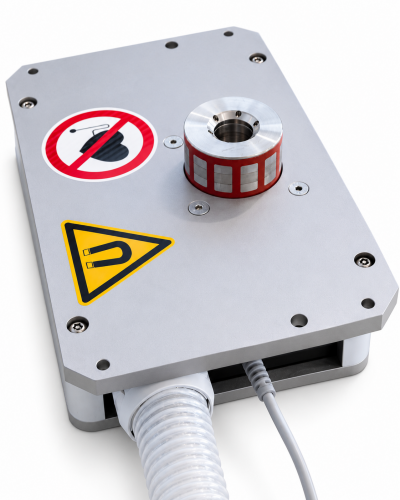

Exterior magnetizing fixture for PM brushless machines inner radial flux rotors, water cooled, rapid power connectors on panel, fluxmeter sense coil embedded
Radial Flux Magnetizing Fixture

Interior magnetizing fixture for PM brushless machines outer radial flux rotors, water cooled, rapid power connectors on cable, fluxmeter sense coil embedded.
Applications:
  • Magnetization, demagnetization and treating of inner and outer rotors for radial flux PM brushless machines
  • BLDC and PMSM
  • Big variety of configurations: SPM (surface mounted magnets), IPM (Interior Permanent Magnet), Spoke rotors
  • Stators of DC PM machines
  • Straight, continuous or step skewed rotors or stators
  • Continuous or discrete Halbach configurations
Key benefits:
  • Excellent heat dissipation
  • Robust
  • Very fast duty cycle
  • Flux sense coil embedded
Options:
  • Air or water cooled
  • Without magnetic core
  • Any type of permanent magnet materials
Download Brochure
