AMH-50K Permeameter

Laboratorio-Elettrofisico-AMH-50k-soft-magnetic-materials

AMH-50K Permeameter: high power measurements of rings and strips in DC and AC

The AMH-50K-S Permeameter is a DC and AC automatic measuring system to characterize rings and strips at high power. It measures DC up to 50 KHz.
>> All DC/AC AMH-series meet the International Standards IEC 60404-4, IEC 60404-2, IEC 60404-6 and ASTM A773.

BASIC CONFIGURATION

Fluxmeter
Arbitrary function generator
Power amplifier
Fast acquisition unit
Connection tool for ring sample
PC and printer
Dedicated software Neon 1.0
Reference sample, for day-to-day control

ACCESSORIES

Epstein frame (see page)
Single strip test fixture
Ring coil >>

AMH-SERIES SOFTWARE

Our proprietary software automatically manages measurements for the AMH-Series of AC/DC permeameters. The software ensures the measuring process is accurate and absolute and prevents the operator from improperly setting the sample’s parameters.

SUPPORT

Support is guaranteed via TeamViewer, Skype and through our software that allows sending technical assistance requests via email.

SOFT MATERIALS MEASURED

Iron & Carbon Steels
Fe-Si
Fe-Ni
Fe-Co
Soft Ferrite
Amorphous Alloys
Nano-Crystalline Alloys

KEY BENEFITS

Automatic measurement of complete DC or AC hysteresis loop, normal magnetization curve, permeability curve
Remanence Br, coercivity Hc, saturation values Hsat, Bsat, Jsat, cycle area, relative permeability, losses, losses separation, etc.
Easy-to-use Software and Hardware

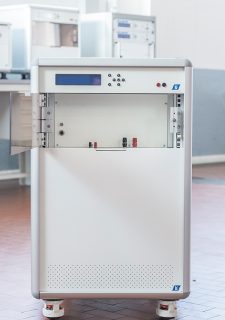

AMH-50K-S Permeameter
