AMH-1M Permeameter: soft metal permeameter with DC and AC measurements of rings and strips up to 1 MHz

The AMH-1M-S Permeameter is a DC and AC automatic measuring system to characterize rings and strips at high resolution. It measures DC up to 1 MHz.
>> All DC/AC AMH-series meet the International Standards IEC 60404-4, IEC 60404-2, IEC 60404-6 and ASTM A773.

Key benefits
  • Automatic measurement of complete DC or AC hysteresis loop, normal magnetization curve, permeability curve
  • Remanence Br, coercivity Hc, saturation values Hsat, Bsat, Jsat, cycle area, relative permeability, losses, losses separation, etc.
  • Easy-to-use Software and Hardware
Basic configuration
  • Fluxmeter
  • Arbitrary Function Generator
  • Power amplifier
  • Fast acquisition unit

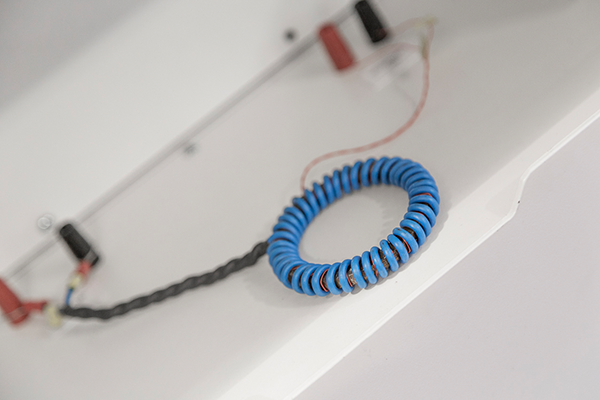

  • Connection tool for ring sample
  • PC and printer
  • Dedicated software Neon 1.0
  • Reference sample, for day-to-day control

Our proprietary software automatically manages measurements for the AMH of DC/AC permeameters. The software ensures the measuring process is accurate and absolute and prevents the operator from improperly setting the sample’s parameters.

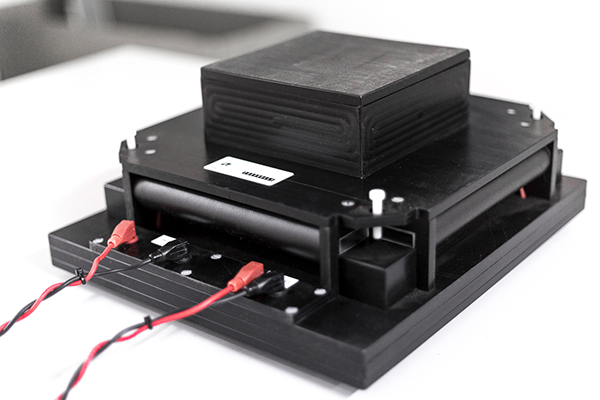

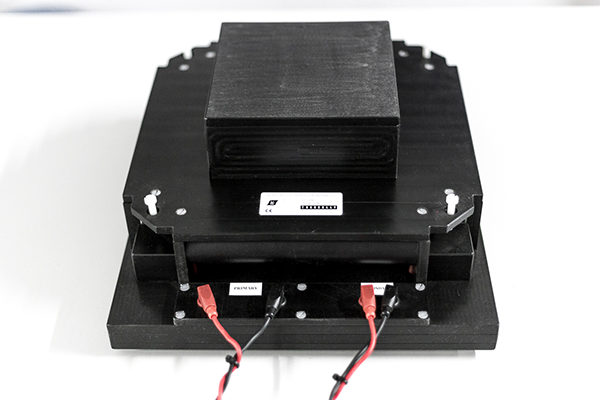

  • Epstein frame
  • Single strip test fixture
  • Iron & Carbon Steels
  • Fe-Si
  • Fe-Ni
  • Fe-Co
  • Soft Ferrite
  • Amorphous Alloys
  • Nano-Crystalline Alloys

Support is guaranteed via TeamViewer, Skype and through our software that allows sending technical assistance requests via email.


Training is provided during the acceptance test at Laboratorio Elettrofisico before delivery or at your facility upon request.

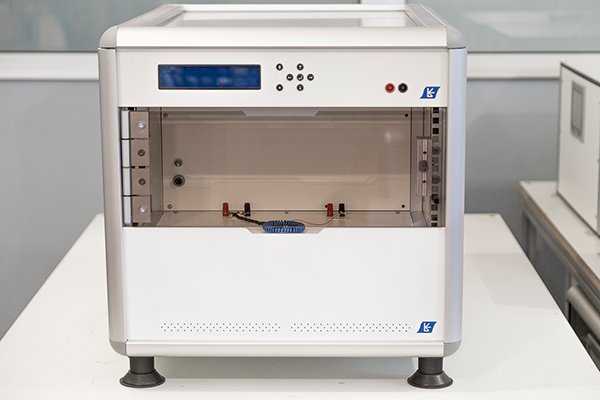

AMH-1M-S Permeameter
