Exterior Radial Multipolar

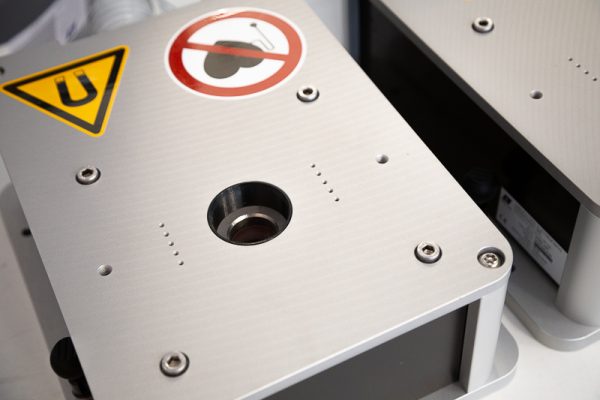

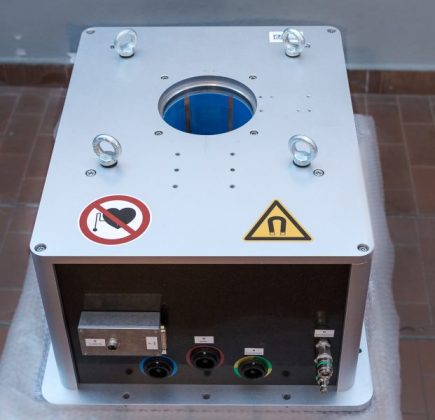

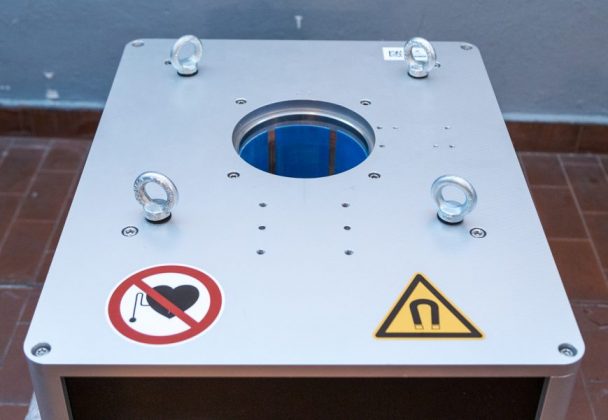

The Exterior Radial Multipolar (named HE) fixture has an iron-laminated core with an equal number of slots and poles to be magnetized. Series or parallel conductors are installed inside these slots. The entire fixture is embedded in the epoxy resin and encased in an IP30 box.

Key benefits
  • The conductors on the device can be positioned to generate a magnetic field in a desired pattern
  • Plenty of space for cooling and insulation material
  • Sense coil embedded in the core
Applications

A wide range of surface-mounted devices or spoke PM inductors (rotors or stators) and sensors.

Magnetizing fixtures for Water pumps - Oil pumps - Power steering sensors - Magnetic bearings - AC brushless motors
