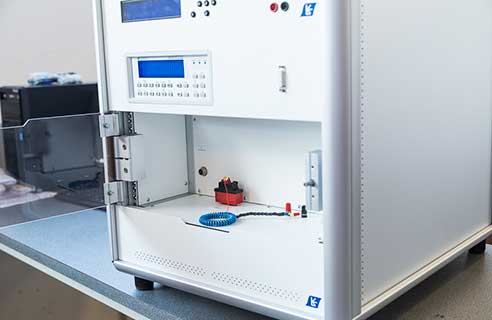

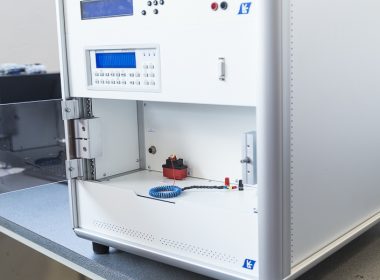

AMH-DC-T-S Permeameter

AMH-DC-T-S Permeameter is an automatic DC measuring system to characterize toroid shaped soft magnetic materials.
>> The AMH-DC-T-S meets the International Standards IEC 60404-4, ASTM A341 and ASTM A596

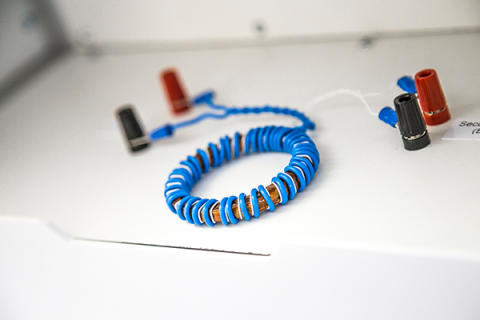

Sample shapes

AMH-DC-T-S sample shapes
AMH-DC-T-S Permeameter

SOFT materials measured
  • Iron & Carbon Steels
  • Fe-Si
  • Fe-Ni
  • Fe-Co
  • Soft Ferrite
  • Amorphous Alloys
  • Nano-Crystalline Alloys
FAST & EASY CHARACTERIZATION

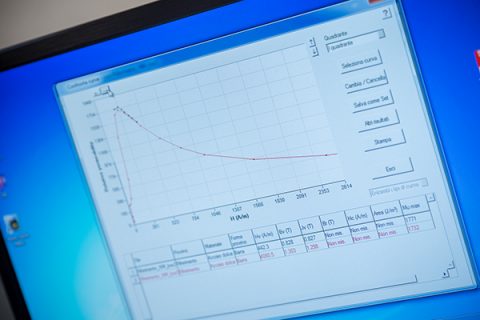

  • automatic measurement of complete hysteresis loop, normal magnetization curve, permeability curve
  • remanence Br, coercivity Hc, saturation values Hsat, Bsat, Jsat, cycle area, relative permeability, etc.
  • easy-to-use software and hardware
  • initial permeability
  • differential permeability
OPTIONALS
  • upgrade to AMH-DC-TB-S available
  • customization for different sizes of materials to measure
  • add-ons enchance for measurements of Hard Ferrite and Alnico

Laboratorio-Elettrofisico_help-assistant

Real-time virtual help assistant for suggestions or warnings that constantly updates the status of the machine and during the measurement cycle.

BASIC CONFIGURATION
  • fluxmeter
  • 2 DC power supplies, with an incorporated precision current meter
  • gaussmeter
  • polarity switch
  • transverse Hall probe
  • pick-up inductive coil
  • electromagnet LEP-SB
  • connection tool for Toroids and Ring samples
  • PC and printer
  • dedicated software Soft2009-P
  • reference bar, for day-to-day control
  • reference ring, for day-to-day control
REMOTE SUPPORT

Support is guaranteed via TeamViewer, Skype and through our software that allows sending, manually or scheduled technical assistance request via email.

TRAINING

The training is provided both during the Acceptance test in Laboratorio Elettrofisico before delivery and, upon request, at Customer’s facility.

SOFTWARE

Soft2015-P software automatically controls the measurements of the AMH-DC-T-S and AMH-DC-TB-S permeameters.
