AMH-DC-TB-S Permeameter

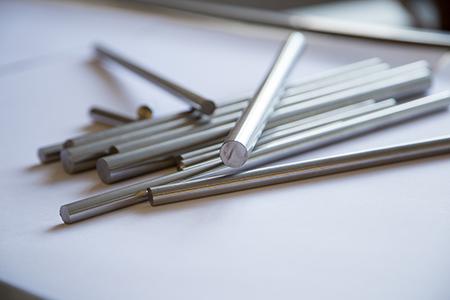

AMH-DC-TB-S Permeameter is a variation of the model AMH-DC-T-S Permeameter and provides additional features to measure bar and strip shaped soft magnetic material in addition to toroids and rings.
>> The AMH-DC-T-S meets the International Standards IEC 60404-4, ASTM A341 and ASTM A596.

AMH-DC-TB-S Permeameter

SOFT materials measured
  • Iron & Carbon Steels
  • Fe-Si
  • Fe-Ni
  • Fe-Co
  • Soft Ferrite
  • Amorphous Alloys
  • Nano-Crystalline Alloys
FAST & EASY CHARACTERIZATION
  • Automatic measurement of complete hysteresis loop, normal magnetization curve, permeability curve
  • Remanence Br, coercivity Hc, saturation values Hsat, Bsat, Jsat, cycle area, relative permeability, etc.
  • Easy-to-use software and hardware
  • Initial permeability
  • Differential permeability
SOFTWARE

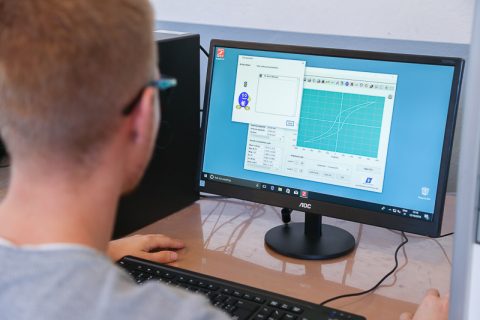

Argon 1.0 software automatically controls the measurements of the AMH-DC-T-S and AMH-DC-TB-S permeameters.

Laboratorio-Elettrofisico_help-assistant

Real-time virtual help assistant for suggestions or warnings that constantly updates the status of the machine and during the measurement cycle.

BASIC CONFIGURATION
  • Fluxmeter
  • 2 DC power supplies, with an incorporated precision current meter
  • Gaussmeter
  • Polarity switch
  • Transverse Hall probe
  • Pick-up inductive coil
  • Electromagnet LEP-SB (Sanford-Bennett yoke)
  • Connection tool for Toroids and Ring samples
  • PC and printer
  • Dedicated software Argon 1.0
  • Reference bar, for day-to-day control
  • Reference ring, for day-to-day control
ACCESSORIES
- Sanford-Bennett yoke Designed to have the best magnetic circuit closure on bars terminals

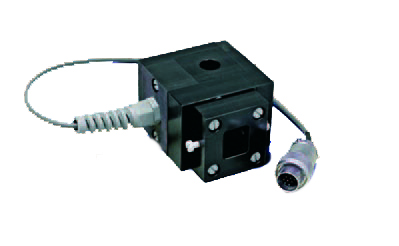

- Pick-up coils Used for the measurement of bars and strings without addition windings around their cross section
- Pole adaptors Permit the matching the sample’s cross section to the poles of the Sanford-Bennett yoke.

REMOTE SUPPORT

Support is guaranteed via TeamViewer, Skype, and through our software that allows a manual or scheduled technical assistance request to be sent via email.

TRAINING

The training is provided both during the Acceptance test in Laboratorio Elettrofisico before delivery and also at the client’s facility upon request.
